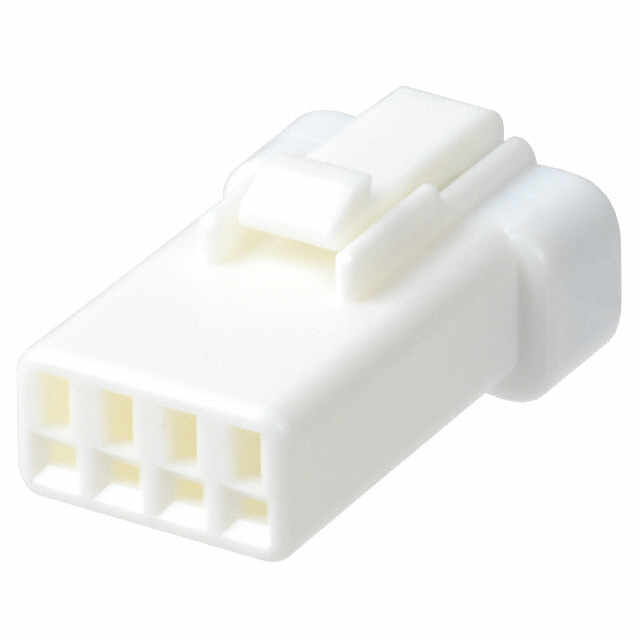

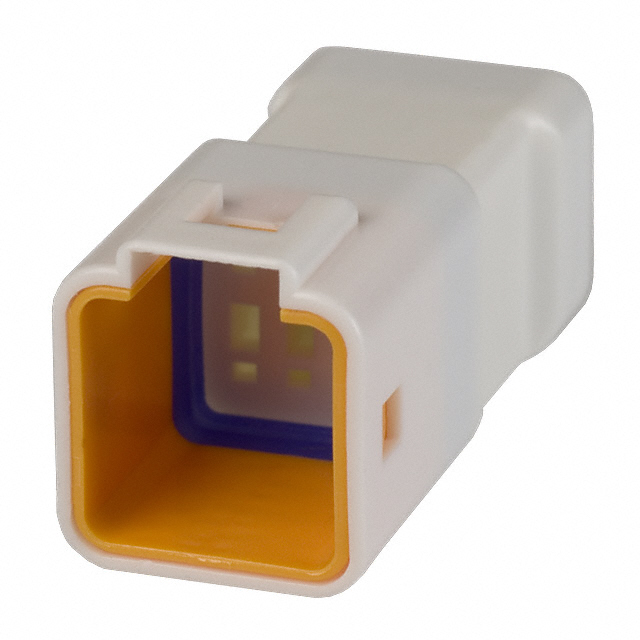

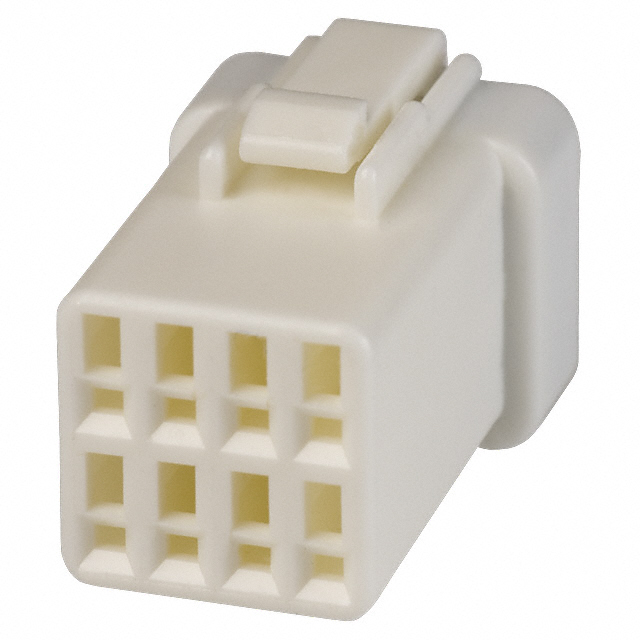

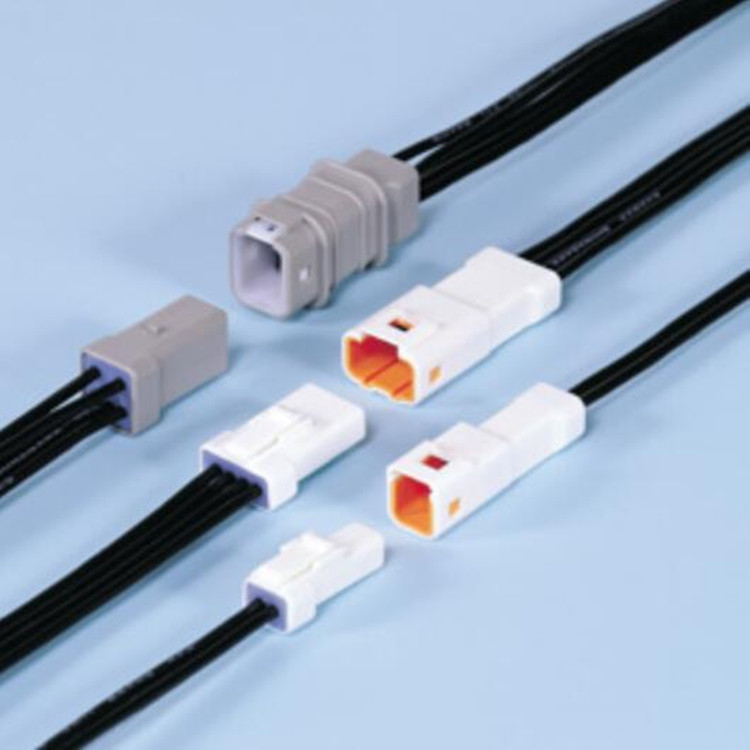

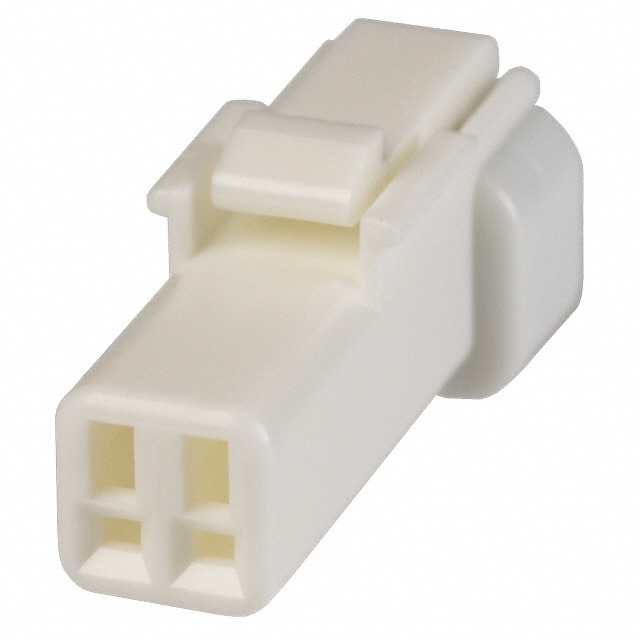

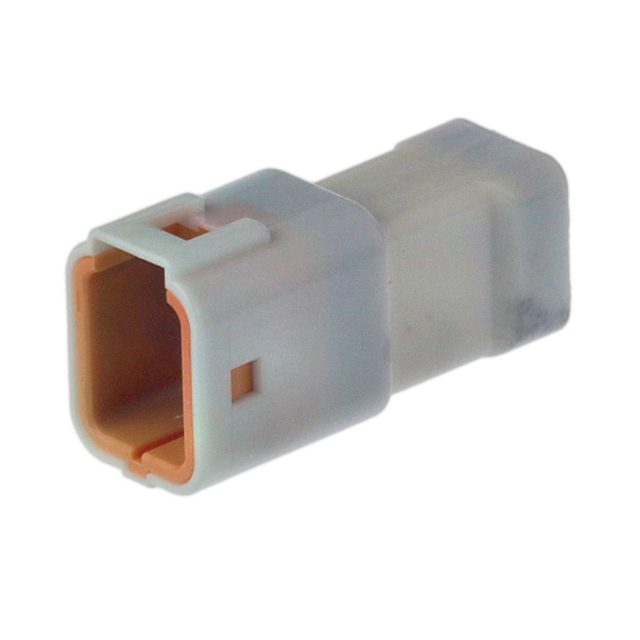

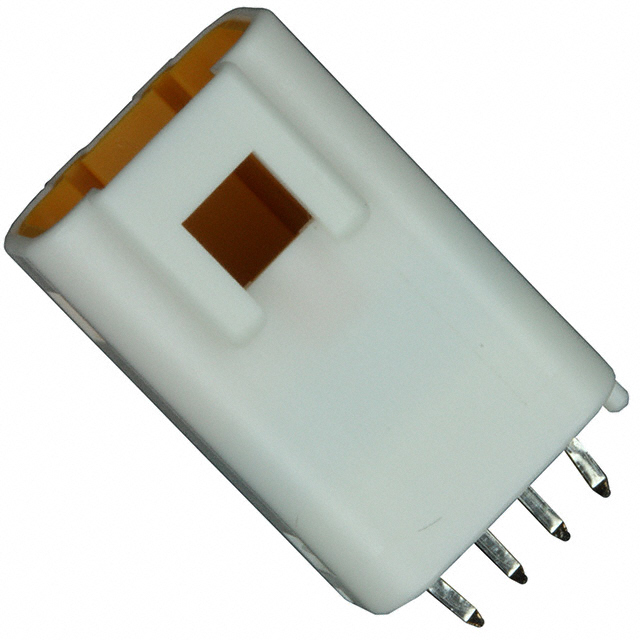

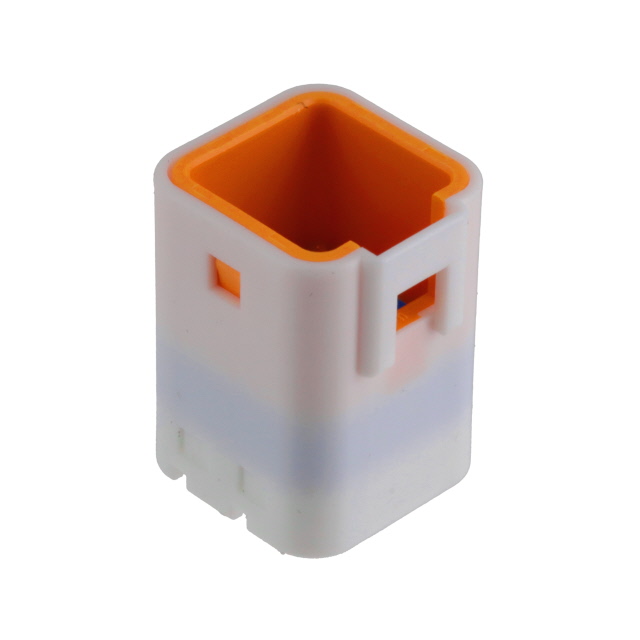

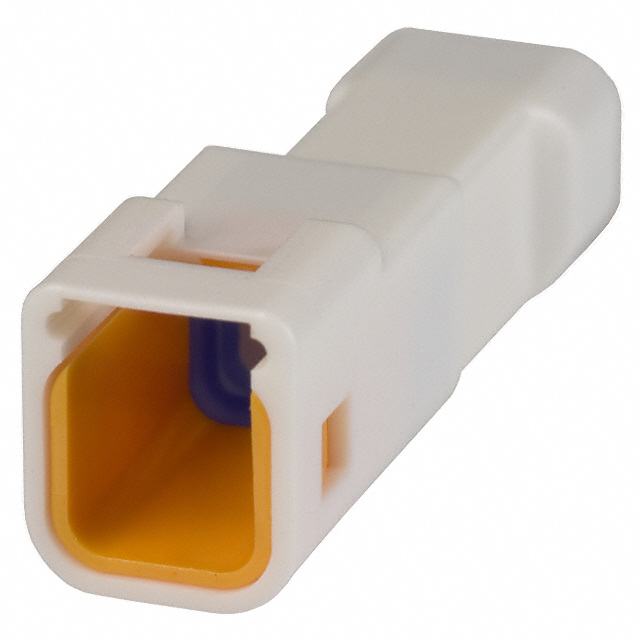

This JWPF connector can be used for the place of which especially waterproof is required.
This is the wire-to-wire connector that is grade 7 ingress protection of JIS C 0920(IPX7 of IEC 60529).
· Waterproof performance
.Contained seal ring
Solid rubber seal
. Double-spring construction
●Housing-to-terminal locks
Inner-housing lock
為需要免受惡劣環境影響的應用提供高質量微型（2.00 毫米）防水互連解決方案。它具有 IPX7 防護等級，并帶有按下釋放閂鎖，有助于確保插配連接牢固。這些端子有 02、03、04、06 和 08 位置，端子規格為 22 AWG ~ 26 AWG。對于許多戶外應用來說，這是一個很好的解決方案，如下所述。
offers a high-quality miniature (2.00 mm) waterproof interconnect solution for applications requiring protection from harsh environments. This has an IPX7 rating with a press-to-release latch to help ensure that mating connections are secure. These are offered as 02, 03, 04, 06, and 08 positions with 22 AWG ~ 26 AWG terminals. This is a great solution for many outdoor applications as noted below.
Features
Rated current: 3 A
Voltage rating: 100 VAC/DC(RMS)
Dielectric withstanding voltage : 1000 VAC for one minute
Contact resistance: <10 mΩ
Insulation resistance: >1000 MΩ
Operating temperature: -55°C ~ 85°C
RoHS compliant
International protection: IPX7
Applications
White goods: such as refrigerators and washing machines
Automotive: lamps and side mirrors
Railway: inner and outdoor lighting systems and low-current power system

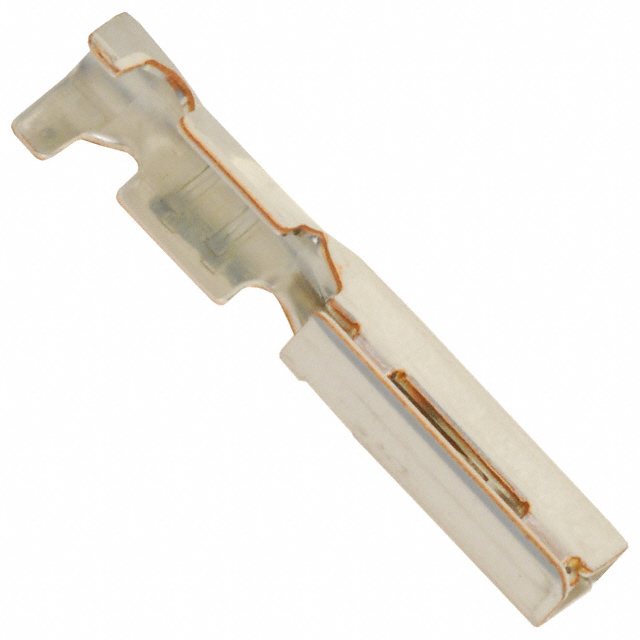

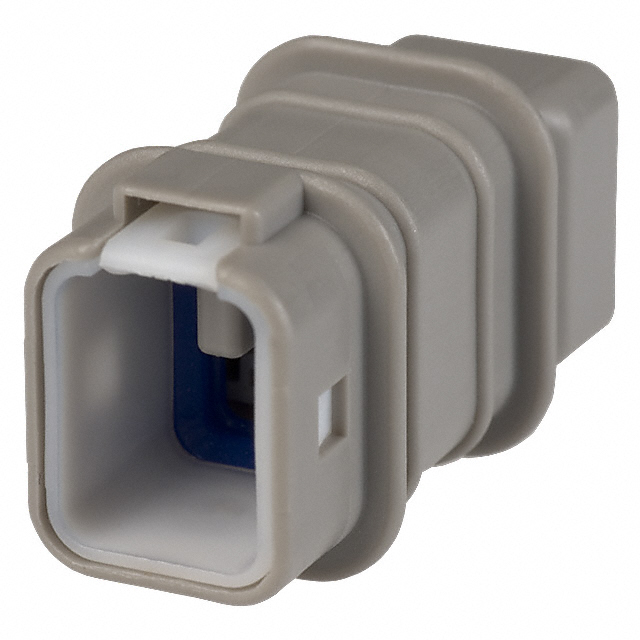

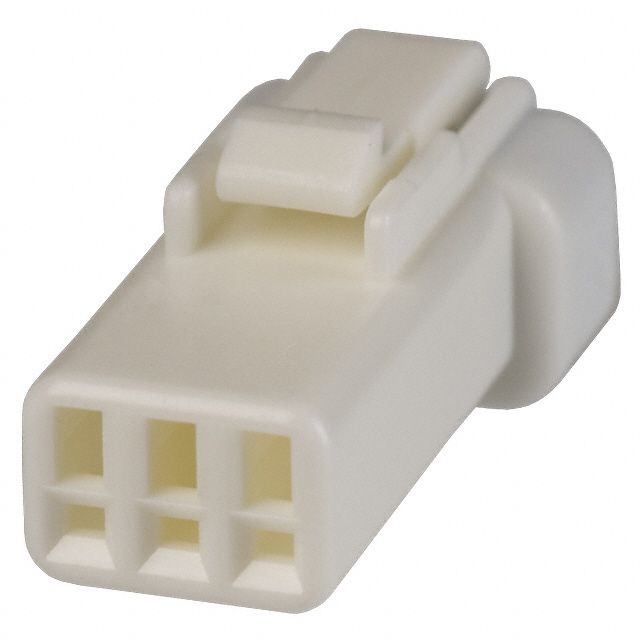

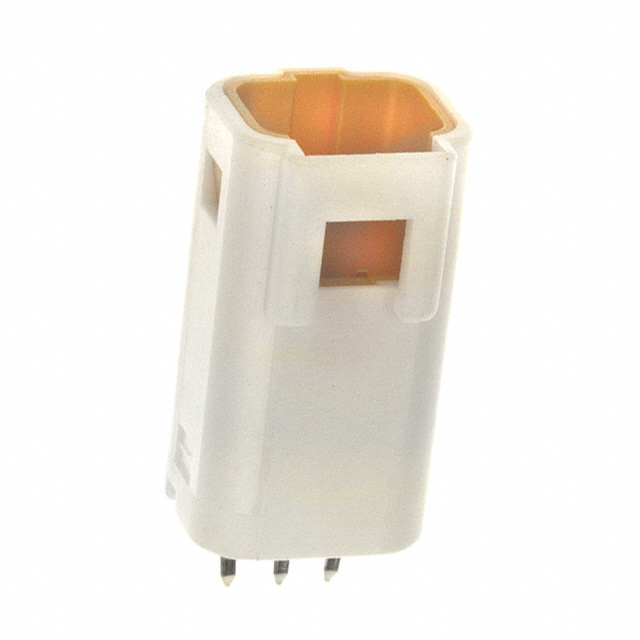

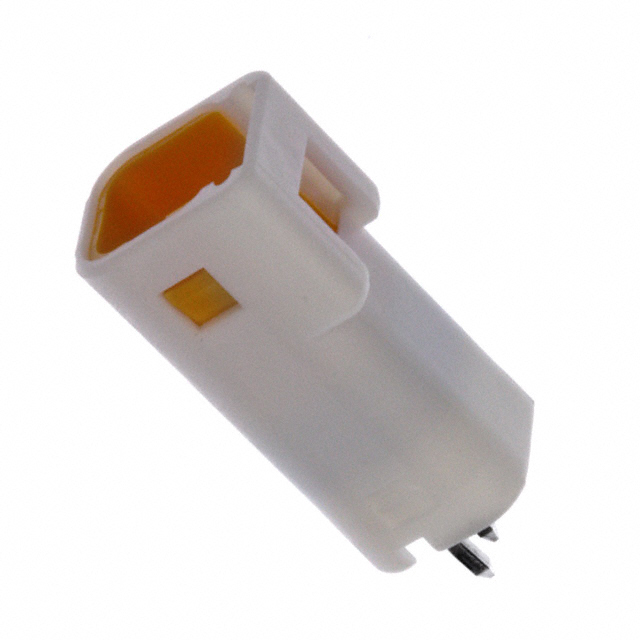

| C2019-T | C2019H-XP | C2019WV-F-XP |

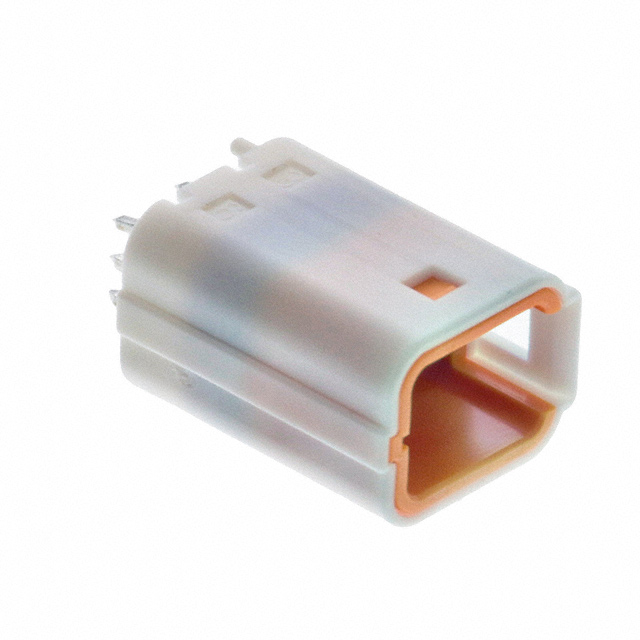

| SWPR-00AT-P025 | 02R-JWPF-VSLE-S | B02B-JWPF-SK-R |
| 03R-JWPF-VSLE-S | B03B-JWPF-SK-R |
| 04R-JWPF-VSLE-S | B04B-JWPF-SK-R |
| 05R-JWPF-VSLE-S | B05B-JWPF-SK-R |
| 06R-JWPF-VSLE-D | B06B-JWPF-SK-R |
| 07R-JWPF-VSLE-S | B07B-JWPF-SK-R |
| 08R-JWPF-VSLE-D | B08B-JWPF-SK-R |
|
|
|

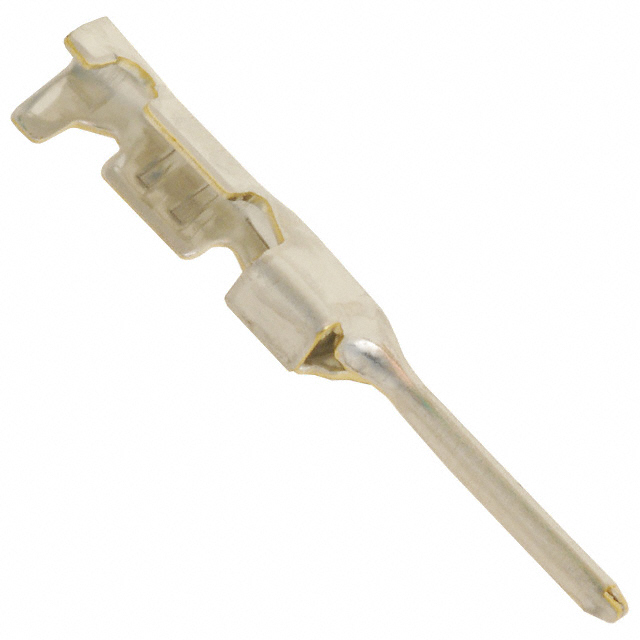

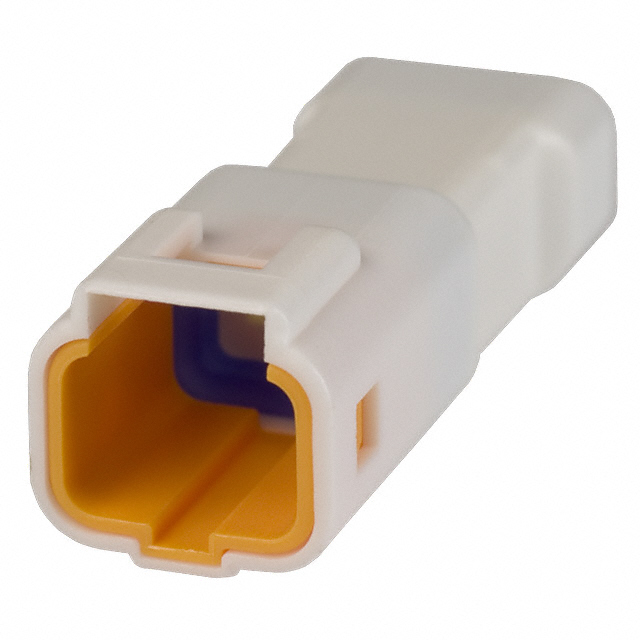

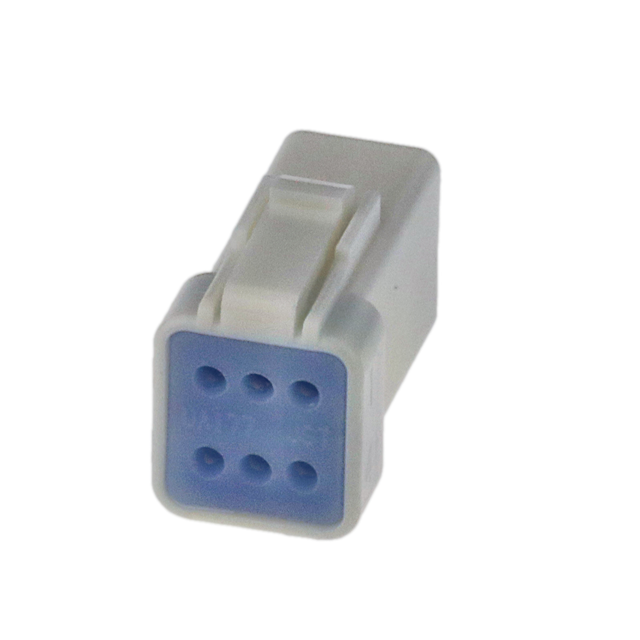

| C2019F/M-T | C2019HF-XP | C2019HM-XP |
| SWPT-001T-P025 | 02T-JWPT-VSLE-S | 02R-JWPF-VSLE-S |
| SWPR-001T-P025 | 03T-JWPT-VSLE-S | 03R-JWPF-VSLE-S |
| 04T-JWPT-VSLE-S | 04R-JWPF-VSLE-S |
| 05T-JWPT-VSLE-S | 05R-JWPF-VSLE-S |
| 06T-JWPT-VSLE-S | 06R-JWPF-VSLE-D |
| 07T-JWPT-VSLE-S | 07R-JWPF-VSLE-S |
| 08T-JWPT-VSLE-S | 08R-JWPF-VSLE-D |
|
|
|
| C2019T | C2019HXP | C2019WVFXP |
| SWPR00ATP025 | 02RJWPFVSLES | B02BJWPFSKR |
| | 03RJWPFVSLES | B03BJWPFSKR |
| | 04RJWPFVSLES | B04BJWPFSKR |
| | 05RJWPFVSLES | B05BJWPFSKR |
| | 06RJWPFVSLED | B06BJWPFSKR |
| | 07RJWPFVSLES | B07BJWPFSKR |
| | 08RJWPFVSLED | B08BJWPFSKR |
| |
|
|
| C2019F/MT | C2019HFXP | C2019HMXP |
| SWPT001TP025 | 02TJWPTVSLES | 02RJWPFVSLES |
| SWPR001TP025 | 03TJWPTVSLES | 03RJWPFVSLES |
| | 04TJWPTVSLES | 04RJWPFVSLES |
| | 05TJWPTVSLES | 05RJWPFVSLES |
| | 06TJWPTVSLES | 06RJWPFVSLED |
| | 07TJWPTVSLES | 07RJWPFVSLES |
| | 08TJWPTVSLES | 08RJWPFVSLED |
