分流器 Adam Tech 的分流器已通過 UL 認證且符合 RoHS 標準 Adam Tech 分流器圖片 Adam Tech 的分流器可高效地跳接排針上的各個引腳，以在 PCB 上執(zhí)行手動編程。該產品系列包括開頂式和閉頂式分流器。每個都有多種位置和間距選項。其他選項包括接觸表面和分流器高度。每個分流器均由聚對苯二甲酸丁二醇酯 (PBT) 或聚酰胺 (PA66) 絕緣。所有 Adam Tech 分流器均經過 UL 認證且符合 RoHS 標準。特性 迷你、聯(lián)動和標準分流器 開頂式和閉頂式母插座 2 至 20 針 間距選項：0.050" (1.27 mm)、0.079" (2.00 mm)、0.100" (2.54 mm) 或 0.200" (5.08) mm) 節(jié)距 高度范圍為 0.118" (3.00 mm) 至 0.531" (13.50 mm) 金或錫接觸表面 黑色外殼 外殼材料：聚對苯二甲酸丁二醇酯 (PBT) 或聚酰胺 (PA66)、尼龍 6/6 易燃等級：UL94 V- 0 或 UL94 V-2 額定電壓：250 VAC 額定電流：1 A 至 3 A
應用：工業(yè)、汽車、測量
Shunts
Adam Tech’s shunts are UL certified andRoHS compliant

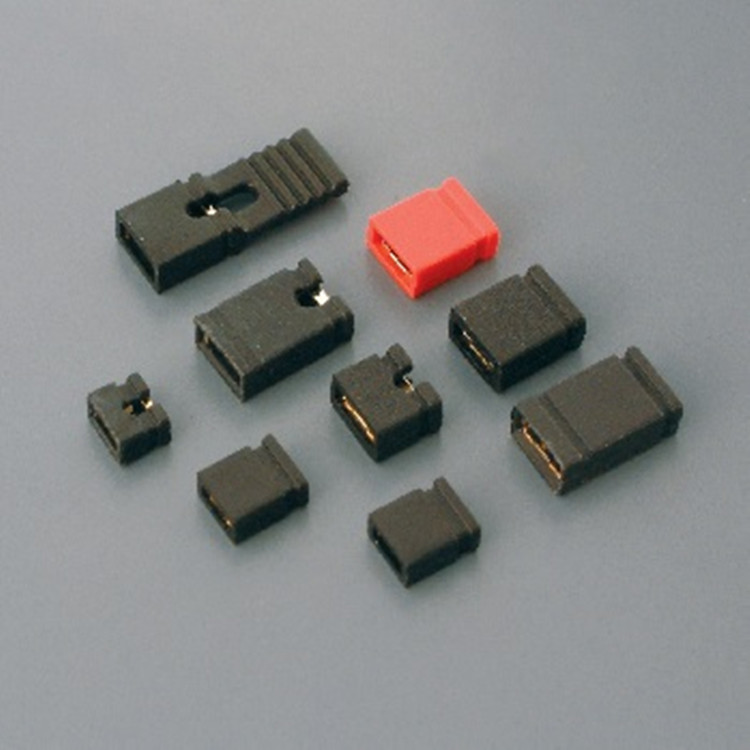

Image of Adam Tech ShuntsAdam Tech's shuntsefficiently jump individual pins on pin headers to perform manual programmingon PCBs. This product line consists of open-top and closed-top shunts. Each isavailable in a variety of positions and pitch options. Additional optionsinclude contact finish and shunt height. Each shunt is insulated by eitherpolybutylene terephthalate (PBT) or polyamide (PA66). All Adam Tech shunts areUL certified and RoHS compliant.
Features
Mini, ganged, and standard shunts
Open-top and closed-top
Female sockets
2 to 20 pins
Pitch options: 0.050" (1.27 mm),0.079" (2.00 mm), 0.100" (2.54 mm), or 0.200" (5.08 mm) pitch
Height ranging from 0.118" (3.00 mm)to 0.531" (13.50 mm)
Gold or tin contact finish
Black housing
Housing material: polybutyleneterephthalate (PBT) or polyamide (PA66), nylon 6/6
Flammability rating: UL94 V-0 or UL94 V-2
Voltage rating: 250 VAC
Current rating: 1 A to 3 A
Applications
Industrial
Automotive
Measurement
| STC02SYAN | SPC02SXCN-RC | 999-11-210-10 | 63429-302LF |
| SPC02SYAN | NPC02SXON-RC | 999-11-210-11 | QPC02QXGN-RC |
| S1621-46R | 382811-8 | 999-11-220-11 | 68786-202 |
| 5025 | SPN02SYBN-RC | 999-11-230-10 | AKSPT/G-04 |
| SSC02SYAN | SPN02SXCN-RC | 65474-005LF | AKSO-200/G-03 |
| S1731-46R | SNT-100-BK-T | DF11-4DP-SP1(05) | 69145-304 |
| NPB02SVAN-RC | M7582-05 | DF11-6DP-SP1(05) | 69145-106 |
| NPB02SVFN-RC | M7581-05 | 65474-007 | 75800-002LF |
| S1911-46R | 881545-1 | 65474-007LF | AKSPT/G-05 |
| 5104TR | 2-881545-2 | BTSW-101-01-F-S | 75800-002 |
| M7685-05 | 68786-102LF | 9-1740617-9 | 200A10039X |
| M50-1900005 | 881545-2 | DF11-8DP-SP1(05) | 71363-302 |
| M7686-05 | SNT-100-BK-G | 861410021H11LF | SX4020 |
| D3080-05 | 60900213421 | 1.09296E+14 | AKSO-200/G-04 |
| M50-2000005 | 68786-202LF | AB 10 | 69145-308LF |
| D3082-05 | SNT-100-BK-G-H | 65771-002 | AKSPT/G-06 |
| 1430-1 | SNT-100-BL-G | AB 11 | 69145-106LF |
| 15291025 | M22-1900005 | AB 14 | 900590013 |
| 65474-001LF | 15291024 | AB 8 | 69144-204 |
| 999-11-110-10-000000 | 2SN-BK-G | BTMM-101-01-T-D | 69146-204 |
| D3086-99 | 929957-08 | PRT-09044 | AKSPT/G-07 |
| D3087-98 | 531230-4 | AB 10B | 69144-208LF |
| 999-11-210-10-000000 | 929950-00 | BTSW-102-01-T-S | AKSO-200/G-05 |
| 1461R | 86730-001LF | BTMM-101-01-G-S | 69145-304LF |
| FDC02SXNN | 929955-06 | BTSW-101-01-T-S-LL | 1-382811-8 |
| SX1100-A | 390088-2 | AB 9 | 900590011 |
| EDJ1G0 | 531230-2 | BTMM-102-01-T-S | 75630-001 |
| 09200-71-BAGB00 | 810-002-LP1R001 | BTMM-104-01-T-S | 63429-312LF |
| SPN02SVEN-RC | 810-002-SP2L001 | 65829-003LF | SNT-100-OR-T |
| AKSCT/G BLACK | 1-382811-6 | D3089-97 | AKSPT/G-08 |
| MS2C-G | 530153-2 | 1.09296E+14 | 69145-306LF |
| SPC02SVJN-RC | 09200-71-BDGB00 | 65771-005LF | SX4030 |
| MSA-G | SX1100-B | BTSW-105-01-T-S | 69145-206 |
| SPC02SVGN-RC | 09200-71-BBGB00 | BTSW-103-01-T-S | AKSO-200/G-06 |
| MSBH-G | MSB-G | BTMM-105-01-T-S | 71363-202 |
| MS2H-1-G | MS2B-G | BTMM-103-01-T-S | 41670300RP1 |
| D3080-46 | M7583-46 | BTSW-104-01-F-S | AKSPT/G-09 |
| MSDA-G | M7581-46 | 3360-1-14-01-00-00-08-0 | JMP100IMP-G-OT |
| S1621-46 | MS2A-G | 3360-1-14-80-00-00-08-0 | AKSO-200/G-07 |
| 5102 | STN02SYBN-RC | 3360-2-14-80-00-00-08-0 | 69145-110 |
| HMSC-G | NPN02SXNN-RC | BTSW-106-01-T-S | AKSPT/G-10 |
| 5100 | SPC02SXIN-RC | 3360-4-14-80-00-00-08-0 | 63429-212LF |
| MSE-G | NPN02SXLN-RC | 3360-5-14-80-00-00-08-0 | 69146-210 |
| 5104 | AKSPT/G BLACK | BTMM-106-01-T-S | AKSO-200/G-08 |
| HMSA-G | AKSPLTG BLACK | BTSW-104-01-T-S | SX4040 |
| 5026 | 2-382811-1 | 4000-0-14-80-00-00-03-0 | QPC02RXGN-RC |
| M7685-46 | M7582-46 | 3360-2-14-15-00-00-08-0 | SNT-100-OR-G |
| 65474-002LF | ME-100 | 3360-3-14-15-00-00-08-0 | AKSO-200/G-09 |
| 999-51-112-10 | MSC-G | 65771-004 | 009067020000805+ |
| 880584-4 | M7583-05 | BTSW-104-01-T-D | 009067020000807+ |
| M50-1930005 | SNT-100-BK-T-H | BTMM-104-01-T-D | AKSO-200/G-10 |
| M50-1920005 | SNT-100-YW-T | BTSW-103-01-F-S | SX4050 |
| M50-2020005 | 1-881545-1 | 65829-003 | 69145-116LF |
| M7687-05 | 2-382811-0 | BTMM-105-01-T-S-003 | SX4060 |
| M7682-05 | 4-881545-2 | 3360-2-14-21-00-00-08-0 | 69145-108 |
| M50-2030005 | 6.09002E+11 | 65829-001 | 69145-112LF |
| 15381026 | 60900213521 | BTSW-107-01-T-S | 69145-104 |
| D3081-05 | 68786-302LF | BTMM-107-01-T-S | 69145-114LF |
| M7681-05 | M7567-05 | 3360-4-14-21-00-00-08-0 | 2.08261E+14 |
| 1430-2 | M7571-05 | 69144-312LF | 208261024906807+ |
| 1430-5 | M7566-05 | BTSW-104-01-T-S-LL | 2.08261E+14 |
| 65771-002LF | SNT-100-YW-G | BTSW-103-01-T-D | 2.08261E+14 |
| 65474-010LF | SNT-100-RD-G | BTSW-204-01-T-S | 2.08261E+14 |
| M7683-46 | 900590009 | BTSW-108-01-T-S | 2.08261E+14 |
| M7681-46 | 63429-202LF | BTSW-105-01-T-D | 382575-3 |
| 999-11-112-10-000000 | 86730-301LF | BTMM-108-01-T-S | 69146-208LF |
| 15291027 | 382575-2 | BTMM-103-01-T-D | SNT-100-YW-H |
| 3360-1-14-15-00-00-08-0 | M22-1920005 | BTSW-103-01-F-S-LL | SX4070 |
| 999-11-113-10-000000 | SNT-100-BK-H | 1400R | SX4080 |
| HIF3GA-2.54SP | SNM-100-BK-T | BTSW-202-01-F-S | 69145-214LF |
| D3086-98 | M22-1900046 | BTSW-107-01-F-S | QPC02SXHN-M290RC |
| D3086-97 | M22-1910046 | BTSW-205-01-T-S | 69145-218 |
| D3088-98 | 1-881545-2 | BTSW-106-01-T-D | 69145-218LF |
| D3088-99 | XJ8A-0241 | BTSW-110-01-T-S | 69145-120LF |
| D3087-99 | 15381024 | BTMM-106-01-T-D | SX4090 |
| D3089-98 | 60910213421 | BTMM-110-01-T-S | 69145-208 |
| SP200 | 60910413421 | BTSW-106-01-T-S-LL | SX4100 |
| 09200-72-PCGB0B | XJ8A-0211 | BTSW-108-01-F-S | 69146-212 |
| M7686-46 | SNT-100-BK-H-H | BTMM-111-01-T-S | 69146-210LF |
| M7967-05 | 900590007 | BTSW-107-01-T-D | 69146-212LF |
| M7684-46 | SNT-100-RD-H | BTSW-110-01-T-S-004 | 900590012 |
| M7682-46 | 382811-9 | BTMM-112-01-T-S | 69144-220LF |
| M7971-05 | 827914-1 | BTSW-108-01-T-D | 69145-312 |
| M7767-05 | MNT-102-BK-T | BTSW-207-01-T-S-LL | 69146-208 |
| M7967-46 | 60910613421 | BTSW-115-01-T-S | 69144-304LF |
| M7966-46 | 15291026 | 69144-316LF | 69145-314 |
| M7680-46 | 71363-102LF | BTSW-110-01-T-D | 2.08261E+14 |
| M7766-46 | 86730-101LF | BTMM-110-01-T-D | 208261024900878+ |
| D3087-97 | 390088-1 | BTMM-106-01-G-S | 69145-210 |
| 65771-001LF | 142270-5 | BTMM-107-01-T-D | 69145-518LF |
| 999-11-220-10-000000 | 142270-1 | SJ200 | 69145-114 |
| 1487R | MNT-102-BK-G | BTMM-110-01-G-S | 69145-310 |
| 1460R | 4-530153-1 | BTSW-108-01-F-D | 2.08261E+14 |
| 1461B | PS-2SH4-1 | BTSW-118-01-T-S | 69145-216 |
| 1463R | MNT-103-BK-G | BTMM-110-01-T-D-001 | SNT-100-BL-H |
| 9330009842 | 382811-2 | BTMM-107-01-G-S | 69145-312LF |
| 9330009855 | MNT-104-BK-G | BTSW-112-01-T-D | 208261048900807+ |
| M7765-05 | MNT-106-BK-G | BTSW-120-01-T-S | 2.08261E+14 |
| 1.09296E+14 | MNT-107-BK-G | BTMM-107-01-G-D | 2.08261E+14 |
| M7971-46 | 826853-1 | BTMM-120-01-T-S | 69145-116 |
| 3360-5-14-15-00-00-08-0 | MNT-108-BK-G | BTSW-110-01-F-D | 69145-310LF |
| 1487B | 929951-00 | BTSW-212-01-T-S | 69145-518 |
| 9330009833 | 929952-10 | BTSW-115-01-T-D | 69145-212LF |
| 9330009844 | SX1100-H-BLK | BTSW-115-01-T-D-LL | 69145-318 |
| 339-10-106-40-000000 | 09200-72-PBGB0B | BTMM-114-01-G-S | 69145-314LF |
| JL-250-25-T | MSDB-G | BTSW-208-01-T-D | 2.08261E+14 |
| JL-400-25-T | SNT-100-BL-T | BTSW-117-01-T-D | 2.08261E+14 |
| 999-11-113-10 | SNT-100-RD-T | BTMM-112-01-T-D | 69145-120 |
| 999-51-113-10 | M22-1930005 | BTMM-113-01-T-D | 2.08261E+14 |
| 999-11-230-11 | 382811-5 | BTMM-130-01-T-S | 2.08261E+14 |
| 999-11-220-10 | M7565-05 | BTSW-120-01-T-D | 69145-220 |
| D3088-97 | M7567-46 | BTMM-120-01-T-D | MNT-102-BK-H |
| 3360-3-14-80-00-00-08-0 | MSBG-04-G | BTSW-115-01-F-D | 69144-206LF |
| 9330009830 | 881545-5 | BTMM-115-01-T-D | 208261048900878+ |
| 9330009852 | 390088-5 | BTSW-122-01-T-D | 69144-308LF |
| 200A10089X | 69145-206LF | BTSW-122-01-T-D-001 | 69145-320LF |
| 65474-010 | 71363-202LF | BTMM-114-01-G-D | 69145-318LF |
| 1-880584-2 | ML-100 | BTSW-125-01-T-D | 69144-216LF |
| 65474-001 | 531230-1 | BTSW-150-01-T-S | AKSO-200/G |
| 65771-001 | 69145-108LF | BTMM-150-01-T-S | 69144-104LF |
| 65771-005 | MNT-104-BK-T | BTSW-130-01-T-D | 69145-320 |
| 5100TR | 69145-110LF | BTMM-125-01-T-D | MNT-106-BK-T |
| MS2H-2-G | 69146-206LF | 2-1740617-4 | MNT-107-BK-T |
| JL-100-25-T | MNT-105-BK-T | BTSW-150-01-F-S | MNT-103-BK-H |
| M7683-05 | 2-530153-2 | BTSW-150-01-T-D-LL | 2.08261E+14 |
| 1430-4 | 69145-216LF | BTSW-150-01-T-D | 208261048900870+ |
| A3-SP(A) | 69146-204LF | BTMM-136-01-T-D | 2.08261E+14 |
| 62200213421 | MNT-105-BK-G | BTMM-150-01-T-D | 208261048906870+ |
| A3-SP(B) | 69144-204LF | 999-11-230-10-000000 | 2.08261E+14 |
| 6.22002E+11 | 69145-220LF | 339-40-102-40-000000 | 2.08261E+14 |
| M7767-46 | MNT-112-BK-G | 339-40-105-40-000000 | 69144-218LF |
| 4000-0-14-15-00-00-03-0 | 929953-30 | 339-40-103-40-000000 | 1-826853-1 |
| 1460B | MNT-114-BK-G | 339-40-104-40-000000 | MNT-104-BK-H |
| 9330009822 | 390088-3 | BTSW-150-01-F-D | MNT-109-BK-T |
| AMC02SXNN-S328 | 71363-302LF | 339-40-107-40-000000 | 69144-212LF |
| 9330009853 | 69145-210LF | 339-40-108-40-000000 | MNT-110-BK-T |
| 9330009831 | MNT-113-BK-G | 339-40-106-40-000000 | 69144-306LF |
| 9330009858 | 68786-102 | 339-40-109-40-000000 | MNT-105-BK-H |
| 339-10-102-40-000000 | 69145-316LF | 339-40-110-40-000000 | MNT-111-BK-T |
| 339-10-105-40-000000 | 71363-102 | 1462B | MNT-112-BK-T |
| 339-10-104-40-000000 | 69145-208LF | 1462R | 2.08261E+14 |
| 339-10-109-40-000000 | 69145-104LF | 999-11-210-12-000000 | MNT-113-BK-T |
| 9330009847 | 826853-2 | 999-11-220-11-000000 | MNT-117-BK-T |
| 339-10-107-40-000000 | MNT-120-BK-T | 999-11-230-92-000000 | MNT-106-BK-H |
| 339-10-108-40-000000 | 390102-1 | DF11-4DP-SP1 | MNT-108-BK-H |
| 9330009836 | MSBG-03-G | DF11-6DP-SP1 | MNT-111-BK-G |
| 339-10-110-40-000000 | 1-881545-4 | DF11-8DP-SP1 | MNT-118-BK-T |
| 9330009851 | M22-1910005 | DF11-4DP-SP2 | MNT-114-BK-T |
| 9330009862 | 60800213421 | DF11-6DP-SP2 | MNT-109-BK-G |
| 9330009840 | 60900213621 | DF11-4DP-SP2(05) | MNT-119-BK-T |
| 1430-3 | 60910313421 | DF11-6DP-SP2(05) | MNT-115-BK-T |
| 9330009841 | MNT-101-BK-G | DF11-8DP-SP2(05) | MNT-109-BK-H |
| 65474-002 | SNM-100-BK-G | AKSCT-G-BLK | MNT-107-BK-H |
| 5102TR | 60910813421 | AKSCT-G-BLU | 69144-110LF |
| 999-19-210-00 | MNT-108-BK-T | 65474-004 | MNT-116-BK-T |
| 880584-1 | MSBG-02-G | 65474-004LF | MNT-110-BK-H |
| 1.09296E+14 | M7566-46 | 65771-004LF | 69144-210LF |
| BTSW-112-01-T-S | 68786-203LF | 1400B | MNT-115-BK-G |
| 9330009821 | MSBG-05-G | 1400L | MNT-111-BK-H |
| 9330009820 | ML-100S | 1460L | MNT-116-BK-G |
| 339-10-103-40-000000 | 69145-204LF | 1461L | MNT-112-BK-H |
| AKSCT/G RED | MNT-103-BK-T | 1462L | MNT-117-BK-G |
| AKSCT/Z RED | M22-1920046 | 1463L | MNT-113-BK-H |
| 861410021H12 | MSBG-06-G | 1487L | MNT-118-BK-G |
| 861410021H11BLLF | MST-G | D3089-99 | MNT-119-BK-G |
| 861410021H110BLLF | MNT-120-BK-G | M7965-05 | MNT-114-BK-H |
| 861410021H110LF | 382811-6 | D3080-01 | MNT-115-BK-H |
| SPC02SVKN-RC | 531230-3 | D3081-01 | MNT-116-BK-H |
| 63429-102LF | 827914-3 | D3082-01 | MNT-117-BK-H |
| SPC02SVDN-RC | 142270-3 | D3083-01 | MNT-120-BK-H |
| 861410021H12LF | MNT-110-BK-G | D3083-05 | MNT-118-BK-H |
| AKSCT/Z BLACK | AKSPT/Z GREY | M7680-05 | 69144-214LF |
| SPN02SVBN-RC | AKSPT/Z BLUE | M7687-46 | STN02SYBN |
| 68786-304LF | AKSPT/Z RED | M7766-05 | SPN02SYBN |
| 861410021H16LF | AKSPT/Z BLACK | M7771-05 | 800-002-LP1-006 |
| 999-11-110-90-000000 | M7580-46 | S1621-06 | 800-002-LP1-001 |
| S1621-06R | EDJ4G0 | LJ-40-10 | 800-002-SP2-001 |
| AB 1U-Z | G89011020023DEU | 84944-1 | 800-002-LP1R001 |
| S1731-06R | AKSNT/Z BLACK | 1-880584-1 | 800-002-SP2R001 |
| AB 1U-G | AKSPLTG RED | 880584-7 | AKSNT-G-BLK |
| 63429-442LF | AKSPLTZ BLACK | 65829-001LF | AKSNT-Z-BLK |
| AB 3U-G | AKSPT/G GREY | JL-300-25-T | AKSPLT-G-BLK |
| 63429-112LF | AKSPLTZ RED | BTMM-102-01-G-D | AKSPLT-Z-BLK |
| 999-11-110-10 | SX8100-B | BTMM-102-01-T-D | AKSPLT-Z-RED |
| 999-11-112-10 | QPC02DXGN-RC | BTMM-102-01-T-S-002 | 390102-2 |
| 999-19-210-02 | NPC02SXNN-RC | BTMM-104-01-G-S | 810-002-LP1R006 |
| 999-19-210-06 | 68786-103LF | BTMM-105-01-T-D | 69145-204 |
| 999-19-310-00 | AKSNT/G BLACK | BTMM-108-01-T-D | 86730-002LF |
| 999-19-310-02 | AKSPT/G RED | BTMM-111-01-T-D | AKSNT-G-RED-R |
| 999-19-310-06 | AKSO-200/Z | BTMM-114-01-T-D | AKSNT/G-BLUE |
| 999-51-110-10 | AKSPT/G-02 | BTMM-115-01-T-S | AKSNT-Z-RED-R |
| 861410021H18LF | M7580-05 | BTMM-116-01-T-D | AKSPT/G BLUE |
| 63429-412LF | EDJ2G0 | BTMM-117-01-G-D | AKSO-200-G-RED-R |
| D3082-46 | 68786-201LF | BTMM-118-01-T-D | 959102-0000-DA |
| JMP100IMP-G | AKSG-200/G | BTMM-118-01-T-S | 959102-0100-DA |
| M7684-05 | AKSG-200/Z | BTMM-121-01-T-D | 969102-0000-DA |
| D3083-46 | AKSO-200/Z RED | BTMM-123-01-T-D | 881545-3 |
| M7965-46 | SX3100-B | BTMM-127-01-T-D | M22-1930046 |
| NPB02DVFN-RC | 63429-142LF | BTMM-129-01-T-D | M7565-46 |
| 999-19-220-00 | 63429-432LF | BTMM-131-01-T-D | 4-881545-1 |
| 999-19-320-00 | AKSO-200/Z BLUE | BTMM-132-01-T-D | SNT-100-RD-G-H |
| 65474-005 | AKSO-200/G RED | BTMM-132-01-T-S | SNT-100-YW-G-H |
| 1.09296E+14 | AKSO-200/G BLUE | BTMM-140-01-T-D | 452-00009 |
| 880584-5 | 68786-303 | BTMM-140-01-T-S | SNT-100-BL-G-H |
| BTMM-101-01-T-S | 63429-132 | BTMM-143-01-T-D | SNT-100-BL-H-H |
| BTSW-101-01-T-S | 63429-232LF | BTMM-149-01-T-D | SNT-100-BL-T-H |
| 76113-102 | AKSO-200/G-02 | D3081-46 | SNT-100-OR-G-H |
| M7966-05 | 63429-402LF | JL-500-25-T | SNT-100-OR-H-H |
| 76113-101 | 881545-8 | JL-600-25-T | SNT-100-OR-T-H |
| AB 7 | 63429-332LF | JL-1000-25-T | SNT-100-RD-H-H |
| 66464-102 | 63429-132LF | JL-500-250-T-20 | SNT-100-RD-T-H |
| 65474-006LF | 68786-203 |
| SNT-100-YW-H-H |
| A3-SP(B)(02) | AKSPT/G-03 |
| SNT-100-YW-T-H |
| 880584-2 | 63429-242LF | QPC02SXGN-RC | SNT-100-BK-G.MAL |
| 65474-006 | 68786-302 |
|
|
